Product Description
Digital Charpy Impact Test Machine
Model: GC-JZL
1. Product Introduction
The digital display simply supported beam impact tester is mainly used for the determination of the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, glass fiber reinforced plastics, ceramics, cast stones, and electrical insulating materials. It is an ideal test equipment for chemical industry, scientific institutions, colleges and universities, quality inspection and other departments.
2. Test Standards
ISO179-2000 Determination of Impact Strength of Plastic-Hard Material Simply Supported Beams
GB/T1043-2008 Impact Test Method for Rigid Plastic Simply Supported Beam
JB/T8762-1998 Plastic Simply Supported Beam Impact Testing Machine
GB/T18743-2002 The Impact Test Method of Simply Supported Beam of Thermoplastic Pipe for Fluid Transport (applicable to pipe fittings.)
3. Features
Use high-strength carbon fiber swing rod to improve the rigidity of the material
Imported high-resolution digital encoder
Chinese and English operating interface can be selected, test results can be selected in J/m, kg-cm/cm, ft-ib/in and other units
4. Parameters
| Item | Simple supported beam |
| Model | GC-JZL-15D |
| The pendulum energy | 1J,2J,4J,5J,15J |
| Display mode | Color touch screen |
| Pendulum pre-evalution angle | 150ºC |
| Impact velocity | 2.9m/s |
| Pendulum center distance | 230mm |
| Angel accuracy | 0.01° |
| Energy accuracy | 0.01J |
| Jaw support spacing | 40mm,60mm,70mm,95mm(customizable) |
| Supporting blade fillet radius | R=1mm |
| Impact angle | 30° |
| Fillet radius of impact blade | R=2mm±0.5mm |
| Output method | Printout |
| Power | 220V50HZ |

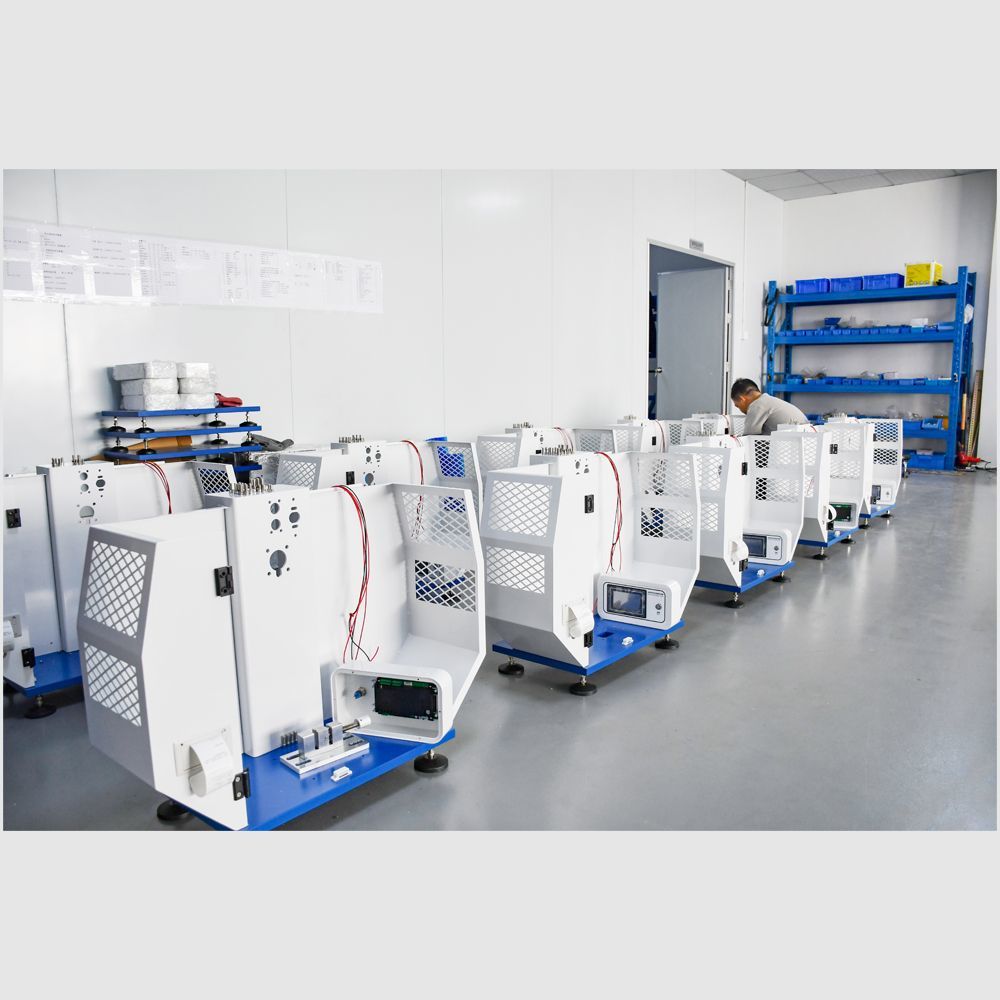

Detailed Photos
F&A
Q: Are you a factory or a trading company?
A: We are a professional OEM testing equipment manufacturer.
Q: Why choose us?
A: We are a professional OEM manufacturer with 15 years of experience in R&D and production of polymer plastic testing instruments, and can provide production and processing customization.
Q: How can we guarantee the quality?
A: Always a pre-production sample before mass production and always a final inspection before shipment.
Q: What's the delivery time?
A: Within 10 working days after deposit is received. If we have products in stock or urgent orders, the delivery time will be shortened.
Q: Mhat about the after-sale service?
A: Every machine from our factory has 12 months warranty. And we also provide life-long paid repair or service.
Q: What services can we provide?
A: Accepted Delivery Terms: EXW/ FOB/CIF and so on.
Accepted Payment Type: T/T.Pay Pal:
Language Spoken: English, Chinese
